PERISTALTIČNE male DOZIRNE ČRPA

PERISTALTIČNE male DOZIRNE ČRPALKE
kislinsko odporne

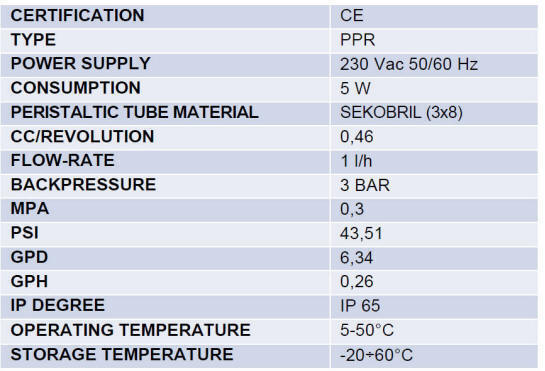

*Seko KRONOS peristaltična črpalka gnana s koračnim motorjem. (STEPPER DRIVE)* Doziranje se prenaša iz vrtečih valjev ki stiskajo cev na ohišje.Pri tem principu črpalke nepovratnih ventilov nima ker to finkcijo prevzame sama cev. Princip delovanja zagotavlja nežni način doziranja fluida preko stiskanja cevi. Ohišje je izdelano iz kemično odporne plastike PPe z IP65 stopnjo zaščite. Opremljen je z več vhodi za merjenje in nastavitev konfiguracij. Koračni motor pomeni, da omogoči obratovanje z konstantno velikimi momenti , pricizno nastavljivostjo in nenehnim nadzorom krmiljenja. ične aplikacije v postopkih, kjer so potrebni le majhni izstopni pretoki, kot so: - pri doziranju kemikalij v galvanske kopeli - dezinfekcije, čistilne naprave,pralna tehnika - pri doziranju v bazenski tehniki S tem bi vam radi, da vam predstavimo značilnosti: - Visoka točnost dozirana 2 ml / h - Visok pritisk 3 bar KRONOS PDF PROSPEKT dokument		SEKOperistaltična dozirne črpalka PPR 01 PPR1 0.15 - 1 l/h @ 3 bar, 230 Vac

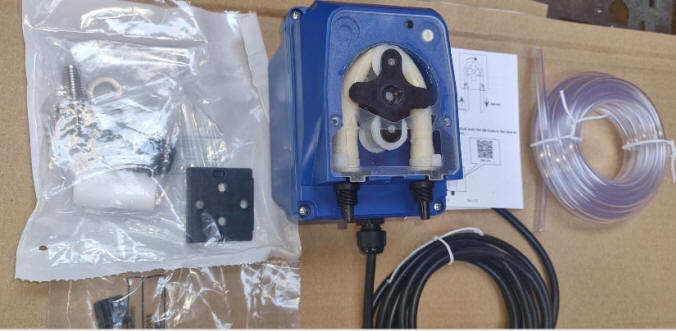

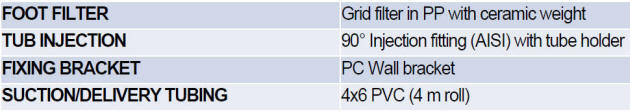

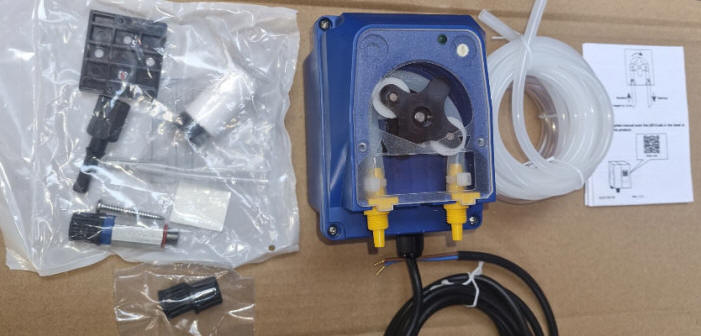

		oprema ki je serijsko priložena, cevke sesalna armatura,maticeza cevke,cevke konzola za stenskomotažo..

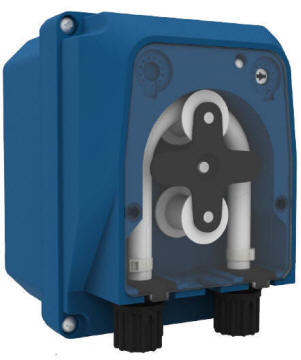

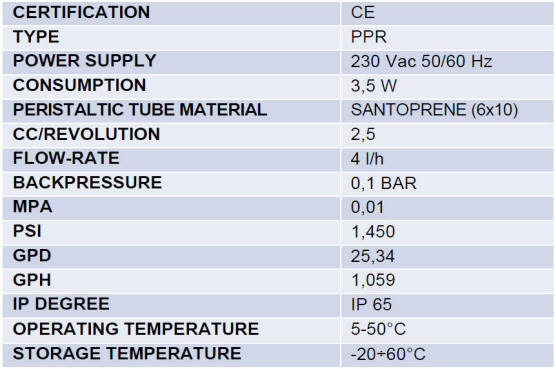

		SEKOperistaltična dozirne črpalka PPR 04 PPR04 0.6 - 4 l/h @ 0.1 bar, 230 Vac, tube: Santoprene

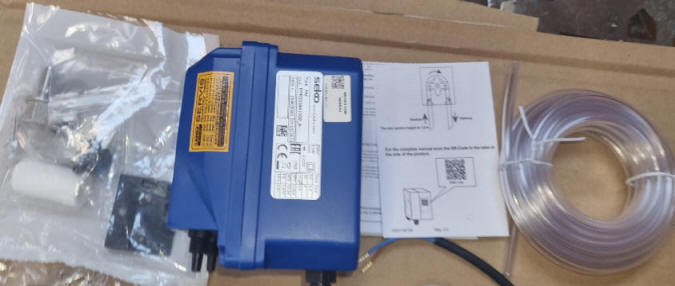

		oprema ki je serijsko priložena, cevke sesalna armatura,maticeza cevke,cevke konzola za stenskomotažo..

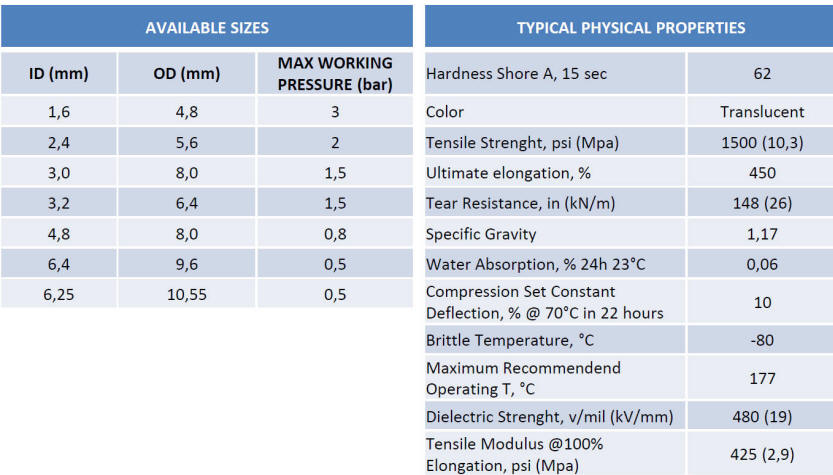

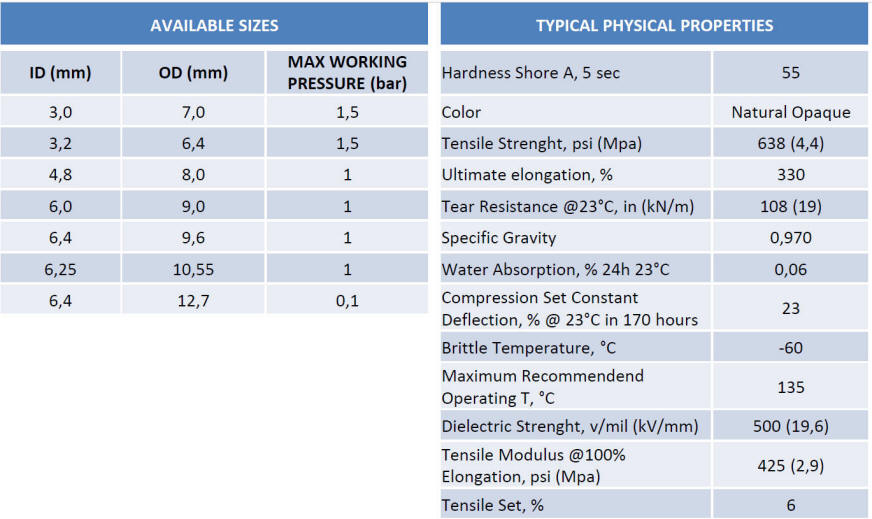

	SEKOBRILL PERISTALTIC TUBE Description: Peroxide-cured Sekobrill Silicone Tubing Formulation is designed for use in applications where flexibility, resiliency and durability are required. Produced from a combination of silicone elastomers, Sekobrill Silicone Tubing optimizes critical physical properties such as tensile strength, elongation and compression set, resulting in a more physically durable product. Its smooth inner surface reduces the risk of particulate entrapment and microscopic buildup during fluid transfer. Sekobrill Silicone Tubing complies fully with the requirements of the USP Class VI Criteria and is entirely non-toxic, non-hemolytic and non-pyrogenic. It also meets 3-A Sanitary Standards, FDA 21 CFR Part 177.2600 Criteria and NSF 51 Standard. Main Features and Benefits: • Provides Resiliency, Long Life and Durability • Ultra-Smooth Inner Bore Reduces risk of Particulate Entrapment • Taste and Odor Free • Withstands Temperature Extremes From -60°C to 177°C • Meets USP Class VI and FDA Criteria Typical Applications: • Veterinary Pharmaceuticals • Respiratory and Anesthesia Equipment • Food and Dairy Processing • Beverage Dispensing • Sterile Filling and Processing

	SANTOPRENE® PERISTALTIC TUBE Description: A colorable thermoplastic general purpose elastomer with good fluid resistance, formulated to replace thermoset elastomers such as EPDM, polychloroprene, and chlorosulfonated polyethylene. It can be processed using injection molding, extrusion, blow molding or other melt processing techniques. It will not weaken or crack after years of exposure to heat and ozone, providing long service in a wide range of applications such as gasketing, abrasion-resistant sleeving and cable insulation. Main Features and Benefits: • UL Yellow Card listed, UL 94 HB flame rating • Continuous temperature rating 1000 hrs. @ 135°C (275°F) • Excellent flex fatigue resistance • Excellent ozone and UV light resistance • Abrasion Resistant • Excellent resistance to alkaline products • Low Gas Permeability Versus Rubber Tubing Typical Applications: • Soap and Disinfectant Dispensing • Swimming Pools water treatment • Caustic Dispensing • Plating and Etching Chemicals • Sterile Filling and Processing

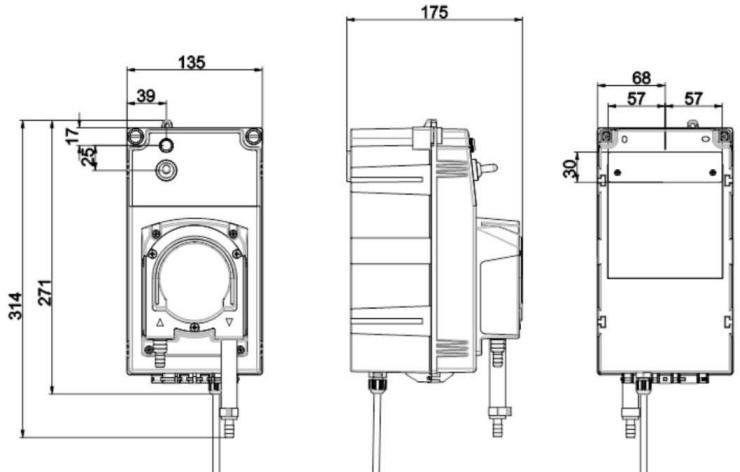

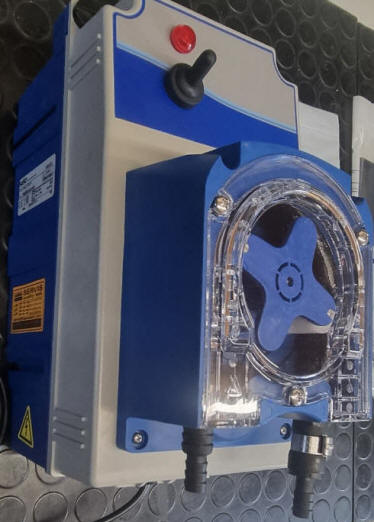

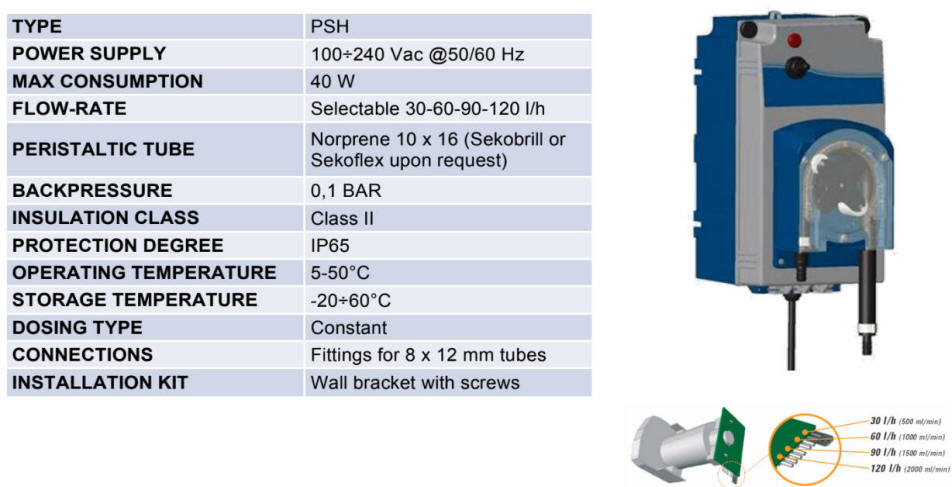

SEKO peristaltična dozirne črpalka PSH do 120 l/h

za črpanje na nizke višine vendar z zmoglivim nastavljivim pretokom 4 vrednosti -preko jumperja na vezju 30- 60 -90-120 l/h
Črpalka je enostavna z regulacijo ON OFF , 230 Vac 50hZ, standardno oprmljena z Norprene cevko ki je primerljiva po kemijskih lastnosti z EPDM
ki pokrova širok spekter kislo alkalnih kemikalij. Črpalka ni ATEX in se ne sme uporabljati za gorljiva in explozivno nevarne tekočine. Montiramo jo lahko na steno z nosilcem .
Tlačna obremenitev 0.1bar.Tmax 50C.

SEKO NORPRENE

PERISTALTIC TUBE

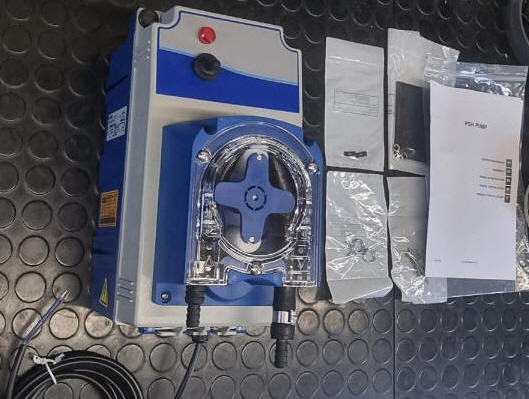

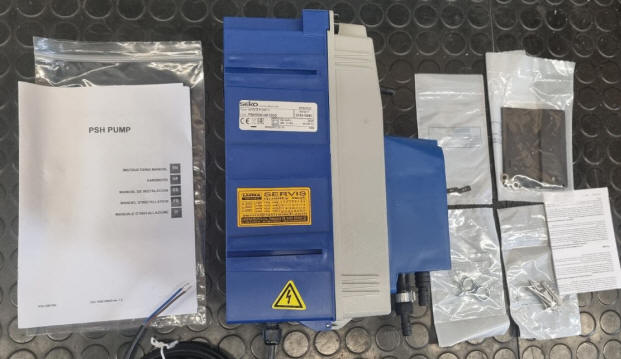

PSH- peristaltična črpalka za kisline in lužine 30-120l/uro
